Product Information
S&P C-Sheet 640 is a unidirectional carbon fibre fabric with high strength and low elongation. S&P C-Sheet 640 is applied (stuck on) using the laminating Resin 55 HP.
Features and Applications
Feature
- Flexible application, e.g. around rafters and beams, or also on curved surfaces such as pipes etc.
- Low tare weight and low installation thickness
- Simple, flexible and economical strengthening method
- No corrosion
- Very short interruption of normal use of the relevant building or infrastructure
- No noise and no vibration during installation
Applications
Strengthening or reinforcement of bearing structures made from reinforced concrete and steel, mainly in cases of shear stress.
- Increase in imposed loads
- Replacement of corroded or missing shear reinforcement
- In case of a change in the structure’s use
- Correction of design and/or building mistakes
- Extension of service life and durability
- Complying with the latest standards
Image Gallery

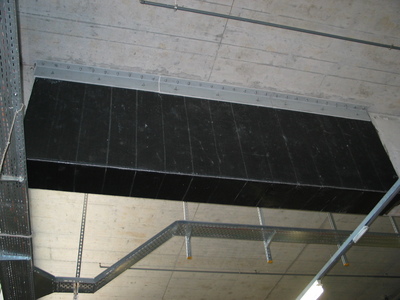

Querkraftverstärkung mit S&P C-Sheet 640

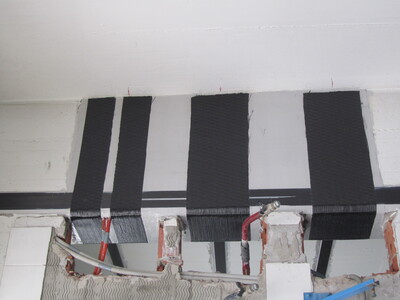

S&P C-sheet 640 for reinforcement of beams

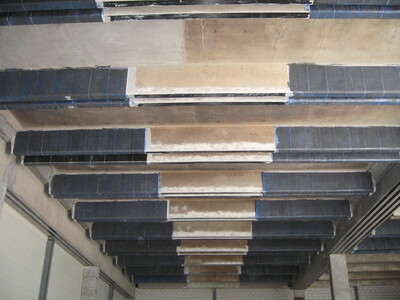

S&P C-sheet 640 for reinforcement of beams despite limited space
Technical Data
Logistic Data
Logistical Data
| Delivery | S&P C-Sheet 640 (400 g/m²) |
|---|---|
| Width of roll: | 300 mm |
| Length of roll: | 50 m |
| (special sheets upon request) |
| Storage |
|---|
| Storage temperature between +5 °C and +35 °C. Store in a dry place and protect from direct sunlight. |
| Item number | Article | Packaging unit / Weight | Dimension |
|---|---|---|---|
| CS640400300 | S&P C-Sheet 640 (400 g/m²) | 1 roll = 15.00 m² / 7.80 kg | H x Ø = 0.33 m x 0.24 m |
| 1 palette = 675.00 m² / 374.00 kg / 45 rolls | 1.20 m x 0.80 m x 1.25 |
Safety Data
Safety Data
For detailed safety information it is recommended to seek advice in the current safety data sheet.
Installation Instructions
Installation Instructions
Treatment
Cut sheets with scissors or knife and ruler. Never bend the sheet in longitudinal direction! (sheet may only be folded parallel to the fibre). The S&P C-Sheet 640 can be applied in a dry or wet “lay-up” process.
For more details please refer to the application manual for S&P C-Sheet 640.
