Product Information
S&P C-Sheet 240 is a unidirectional carbon fibre fabric with high strength for structural reinforcement. Can be applied in a dry or wet process.
S&P C-Sheets are applied (stuck on) to the building element in question using the laminating resin (S&P Resin 55 HP or S&P Resicem HP).
Features and Applications
Feature
- Flexible application, even on curved surfaces such as pillars, columns, silos, chimneys, walls, arched slabs, etc.
- Available in a variety of widths and thicknesses
- Low self-weight and a small application thickness
- Simple, flexible and economic strengthening method
- No corrosion
- Very short interruption of normal use of the relevant building or infrastructure
- No noise and no vibration during installation
Applications
Strengthening or reinforcement of bearing structures made from reinforced concrete, masonry, and timber, for axial, shear, and bending tensile stresses.
- Increasing strength and ductility of columns
- Increasing axial load by "wrapping" columns
- Increasing imposed loads
- Replacement of corroded or missing reinforcement
- In case of a change in the nature of imposed loads
- Correcting of design and/or building mistakes
- Increasing resistance to an earthquake
- Extension of service life and durability
- Complying with the latest standards
Image Gallery

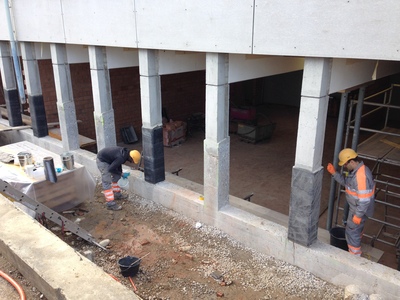

Applikation S&P C-Sheet 240

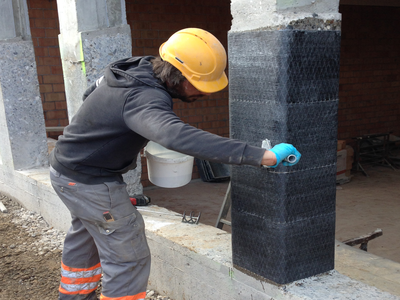

Applikation S&P C-Sheet 240

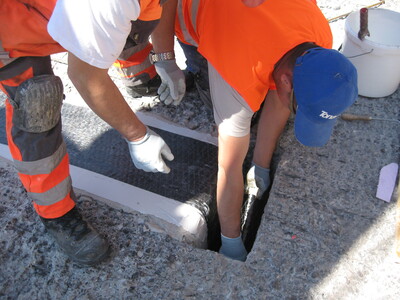

Torsionsverstärkung mit S&P C-Sheet 240

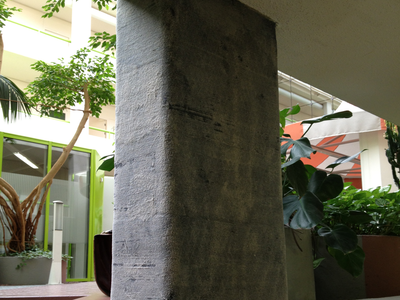

Increasing earthquake resistance using S&P C-sheet 240
Technical Data
Logistic Data
Logistical Data
| Delivery | S&P C-Sheet 240 (200 g/m²) | S&P C-Sheet 240 (300 g/m²) | S&P C-Sheet 240 (400 g/m²) | S&P C-Sheet 240 (600 g/m²) |
|---|---|---|---|---|
| Width of roll: | 300 or 600 mm | 300 or 600 mm | 300 or 600 mm | 300 mm |
| Length of roll: | 100 m | 100 m | 100 m | 100 m |
| (special sheets upon request) |
| Storage | |
|---|---|
| Storage temperature between +5 °C and +35 °C. Store in a dry place and protect fro direct sunlight. |
| Item number | Article | Packaging unit / weight | Dimension |
|---|---|---|---|
| CS240200300 | S&P C-Sheet 240 200 g/m² | 1 roll = 30.00 m² / 8.35 kg | H x Ø = 0.32 m x 0.25 m |
| (roll of 300 mm x 100 m) | |||
| CS240200600 | S&P C-Sheet 240 200 g/m² | 1 roll = 60.00 m² / 17.00 kg | H x Ø = 0.64 m x 0.27 m |
| (roll of 600 mm x 100 m) | |||
| CS240300300 | S&P C-Sheet 240 300 g/m² | 1 roll = 30.00 m² / 11.40 kg | H x Ø = 0.32 m x 0.26 m |
| (roll of 300 mm x 100 m) | |||
| CS240300600 | S&P C-Sheet 240 300 g/m² | 1 roll = 60.00 m² / 22.20 kg | H x Ø = 0.64 m x 0.28 m |
| (roll of 600 mm x 100 m) | |||
| CS240400300 | S&P C-Sheet 240 400 g/m² | 1 roll = 30.00 m² / 14.30 kg | H x Ø = 0.32 x 0.30 m |
| (roll of 300 mm x 100 m) | |||
| CS240400600 | S&P C-Sheet 240 400 g/m² | 1 roll = 60.00 m² / 28.00 kg | H x Ø = 0.64 m x 0.30 m |
| (roll of 600 mm x 100 m) | |||
| CS240600300 | S&P C-Sheet 240 600 g/m² | 1 roll = 30.00 m² / 20.65 kg | H x Ø = 0.32 m x 0.33 m |
| (roll of 300 mm x 100 m) |
Safety Data
Safety Data
For detailed safety information it is recommended to seek advice in the current safety data sheet.
Installation Instructions
Installation Instructions
Treatment
Cut sheets with scissors or a knife and ruler. Never bend the sheet in the longitudinal direction! (sheet may only be folded parallel to the fibre. The S&P C-Sheet 240 can be applied in a dry or wet “lay-up” process.
For details please refer to the application manual for S&P C-Sheet 240.
