S&P Carbophalt® G

Carbon/Glass fibre asphalt reinforcement grid

S&P Carbophalt® G (TDS)

JOSN

Product Information

S&P Carbophalt® G is a pre-bituminised asphalt reinforcement grid made of carbon and glass fibres for local and/or complete surface reinforcement of bituminous surfaces.

Features and Applications

Feature

Increases the load-bearing capacity
Measurable improvement of the structural value due to high tensile strength at small elongation
Minimises crack formation and prevents crack reflection
Reduces fatigue and thermal cracks
Grid structure freely moveable through heat application (no fixed knots)
Local application on existing cracks/joints or complete surface application
No waiting time - immediate road construction possible
Lower consumption of tack coat thanks to the pre-bituminised grid
Easy and efficient application with unrolling equipment (also in curves)
Effectiveness at a cover layer of min. 2 cm
Can be milled and recycled without problems

Applications

Used against cracking
Prevents crack reflection
Increases the durability of asphalt surfaces
Increases the load bearing capacity of asphalt surfaces
The pre-bituminisation guarantees the required layer bonding between old and new road surfaces

Image Gallery

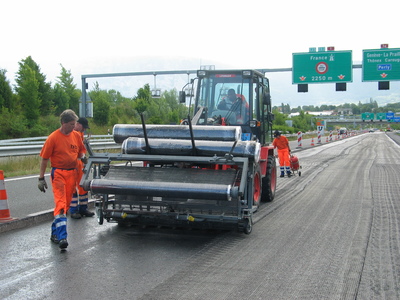

maschineller Einbau S&P Carbophalt G
maschineller Einbau S&P Carbophalt G

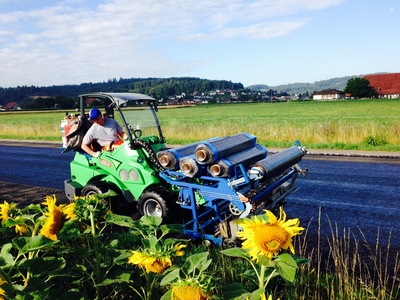

maschineller Einbau S&P Carbophalt G

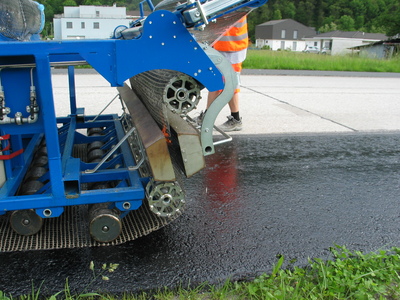

Nätet löper genom läggarens valsar som sedan pressar ned nätet i den klistrade ytan.
Snyggt och prydligt! Byggtrafiken kan utan problem köra över nätet.

Technical Data

Logistical Data

Delivery
Width of roll	0.97 / 1.50 / 1.95 m (further on request)
Length of roll	50 m

Item number	Article	Packaging unit / weight	Dimension
CAG0097200	S&P Carbophalt G (0.97 m)	1 roll = 48.50 m² / 33.900 kg	L x Ø = 1.00 m x 0.32 m
		1 pallet = 533.50 m² / 393.000 kg / 11 rolls	L x B x H = 1.20 m x 0.80 m x 1.15 m
CAG0150200	S&P Carbophalt G (1.50 m)	1 roll = 75.00 m² / 52.450 kg	L x Ø = 1.50 m x 0.32 m
		1 pallet = 1'500.00 m² / 1'090.000 kg / 20 rolls	L x B x H = 1.65 m x 1.05 m x 2.00 m
CAG0195200	S&P Carbophalt G (1.95 m)	1 roll = 97.50 m² / 68.200 kg	L x Ø = 1.95 m x 0.32 m
		1 pallet = 1'950.00 m² / 1'405.000 kg / 20 rolls	L x B x H = 2.00 m x 1.05 m x 2.00 m

- Clean substrate free of dust and grease
- Apply polymer modified emulsion on dry surface
- Apply S&P Carbophalt® G on dry surface by machine or manually, if possible immediately before pavement construction.
- Apply at temperatures > 3 °C. The minimum temperatures cf. SN 640 430b apply for application of layers.
- Observe overlapping lengths of 10 to 20 cm
- Overlapping of reinforcement should be optimised according to the nature and location of joints and cracks, as well as wheel loading.
- If the S&P grid is applied only on local areas, it must be covered manually with bituminous mixture. This prevents the cracking caused by passing vehicles.
- Minimum cover layer thickness of 2 cm on top of S&P Carbophalt® G
